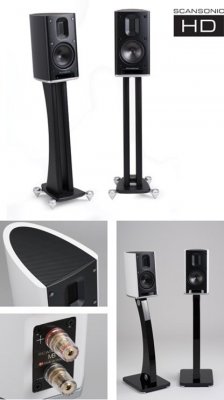

Scansonic MB-1 Stativhögtalare. Stativ köps separat.
Från konstruktören av Raidho:
WEIGHT LOSS FOR RESOLUTION TRANSIENTS AND SUPERB LEADING EDGES
The MB ribbon tweeter has a membrane with an extremely low mass.
It is formed by a Kapton-aluminum sandwich that is only 20 um thick, and the resulting mass is app. 0.03 g., which is approximately 50 times less than any conventional textile, ceramic, beryllium or diamond dome. The lower mass translates directly into higher resolution and less material coloration.
WEAVED CARBON CONES FOR STIFFNESS AND LOW COMPRESSION
For the MB-series, we have developed a ridged, dustcap free, carbon membrane. By carefully optimizing the shape and stiffness, we have succeeded in making a very quiet woofer that blends beautifully with the ribbon tweeter. The woofer has an overhung magnet system, with long linear stroke and excellent bass performance.
Technical information
- Size: (WxHxD) 178 x 312 x 286 mm
- Weight: 6,1 kg
- Freq. response: 50 Hz - 40 kHz
- Impedance: > 6 ohm
- Crossover: 3.5 kHz 2. order acoustic slope
- Enclosure: Curved, heavily braced, ventilated box design with front loaded port
- Drive units: 1 sealed ribbon tweeter with kapton/aluminum sandwich membrane!
- 1 carbon coned 4,5” bass/mid driver with overhung magnet system
- Finish: Black-silk or White-silk
- Amplification: We recommend high quality amplifiers >50W
